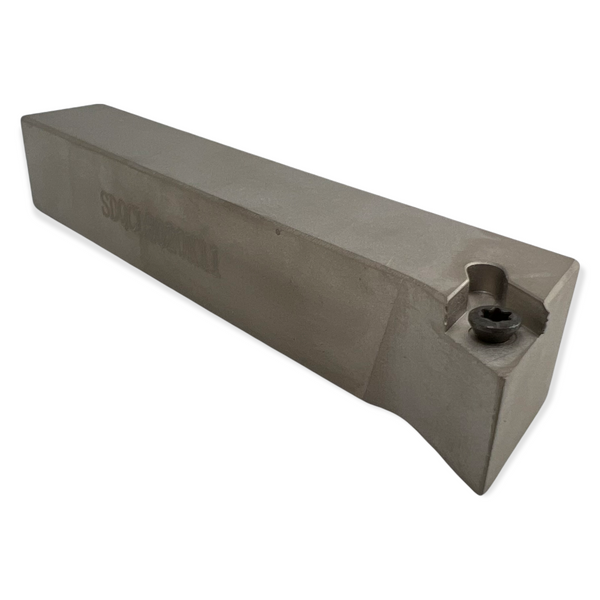

Turning holder SDQCL 2020 K11 for external turning.
Suitable for inserts DC_ _11_ _.
S - Method of clamping insert in to holder, with screw through insert
D - Shape of turning insert which can be clamped into holder (RHOMBIC 55°)
Q- Angle under which the insert is attached to the holder (117,5°)
C - Clearance angle of insert for this holder (7°)
L - Orientation of turnig tool is left
20 - Height of turning tool in mm
20 - Width of turning tool in mm
K - Length of turning tool is 125mm
11- Insert size which can be clamped in to holder
- Hardened steel - 42-45 HRc
with inserts . . . DC_ _11_ _.
